101 Standard Replacent Acutator
15054-001
12 Volt
Included in Standard Trim Tab Kit, Standard Performance Tab Kit, SeaDoo Kit, and Bennett Retrofit Kit

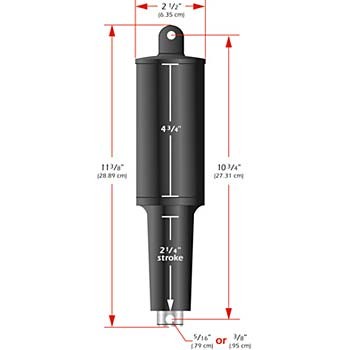

Specifications:
5/16" (.79 cm) mounting hardware
Stroke: 2-1/4" (5.72 cm)
Length overall: 12-1/8" (30.80 cm)
Length pin to pin: 11-1/2" (29.21 cm)
Diameter (upper housing): 2-1/2" (6.35 cm)
Mounting hardware: 5/16" ( .79 cm) or Delrin Pin (Part #121)
- Top cap gland seal sheaths the actuator cable outer jacket as well as both internal conductors for maximum waterproofing
- Corrosion proof Vandar mounts
- Stainless steel ram won"t flex, even under extreme loads
- Double O-ring for maximum protection
- Ballscrew rotates freely on 12 ball bearings at both ends of its stroke so there"s no need for complicated limit switches and clutches
- Self-locking ballscrew locks into position and will not drift
- Precision molded, powdered metal, high alloy gears provide high accuracy, high wear resistance, and high strength for long life
- Tough, high-torque motor easily transfers 750 lbs
- High-impact, ultraviolet resistant nylon 66, 50% glass fiber reinforced thermoplastic housing
- Corrosion proof Vandar cap and mount, stands up to severe loads
P65Warnings.ca.gov
Product Code: 622-15054001
