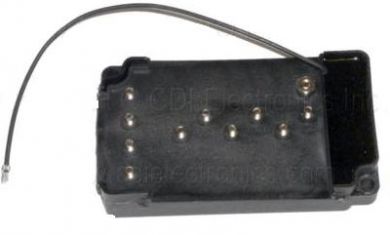

3/6 Cyl.CDI Switch Box
114-7778
Mercury Chrysler/Force Applications
Replacefor Mercury NLA Part Numbers: 332-5524, 332-5524A 1, 332-7778, 332-7778A 1, 332-7778A 3, 332-7778A 5, 332-7778A 6, 332-7778A 9, 332-7778A1
 |
| Mercury Applications |
| Model/HP | Year | Serial Number |
| 50 HP (3 Cyl.) | 1984-1990 | 6428681-D000749 |
| 60 HP (3 Cyl.) | 1984-1990 | 6428681-D000749 |
| 65 HP (3 Cyl.) | 1976-1979 | 4382057-4571651 |
| 70 HP Merc | --- | 704571652-5128279 |
| 70 HP Mariner 70 | --- | 5128280 & 6428680 |
| 70 HP (3 Cyl.) | 1977-1987 | 4571652-A730815 |
| 70 HP (3 Cyl.) | 1987-1993 | A996142-D283221 |
| 75 HP (3 Cyl.) | 1987-1993 | A996142-D283221 |
| 80 HP (3 Cyl.) | 1987-1993 | A996142-D283221 |
| 90 HP (Inline 6 Cyl) | 1979-1986 | 5299506-B110053 |
| 90 HP (6 Cyl) | --- | 5299506 & Up |
| 90 HP (3 Cyl.) | --- | A996142-D283221 |
| 90 HP Sport Jet (3 Cyl.) | 1995 | E021000-E095087 |
| 90 HP Sport Jet (Powerhead) | --- | E023150-E095087 |
| 115 HP (6 Cyl) | --- | 5314656 & Up |
| 115 HP (Inline 6 Cyl) | 1979-1989 | 5314656-C10000 |
| 140 HP (Inline 6 Cyl) | 1979 | 5327663-5625107 |
| 140 HP (6 Cyl) | --- | 5327663 & Up |
| 140 HP Jet (6 Cyl) | 1992-1999 | D082000-G960499 |
| 150 HP V-150 (6 Cyl) | --- | 4868998-G960499 |
| 150 HP V-150 XR2 (6 Cyl) | --- | 6616991-A904645 |
| 150 HP XR2 Mag (6 Cyl) | 1978-1986 | 4868998-OA904645 |
| 150 HP (6 Cyl) | 1985-1990 | A904646-C239552 |
| 150 HP XR4, Magnum II (6 Cyl) | --- | B242885-D819999 |
| 150 HP (16 Amp) (6 Cyl) | 1990-1991 | C239553-D081999 |
| 150 HP (40 Amp) (6 Cyl) | 1990-1995 | C239553-OG201874 |
| 150 HP V-150 XR6 (6 Cyl) | --- | D820000-G960499 |
| 150 HP (40 Amp) (6 Cyl) | 1996-2000 | OG303046-OG840500 |
| 175 HP V-175 EFI, XR1 | --- | 4301235-G960499 |
| 175 HP Black Max (6 Cyl) | 1976-1984 | 4301235-C100860 |
| 175 HP (6 Cyl) | 1989-1991 | OC100861-OD081999 |
| 175 HP XRI EFI (40 Amp) (6 Cyl) | 1992-1995 | OD082000-OG840500 |
| 200 HP V-200, XRI (6 Cyl) | -- | 4839034-G960499 |
| 200 HP Black Max (6 Cyl) | 1978-1981 | 4839034-6073191 |
| 200 HP (15 Amp) (6 Cyl) | 1982-1990 | 073192-C239553 |
| 200 HP (16 Amp) (6 Cyl) | 1985-1999 | 6625221-OG201874 |
| 200 HP XRI, (40 Amp) (6 Cyl) | 1989-1991 | C100861-OG303045 |
| 200 HP EFI (6 Cyl) | 1992-1999 | D082000-OG840500 |
| 220 HP V-220 | 1987-1988 | B117316 & Up |
| 250 HP 2.5L | 1989-1994 | C101891-D280900 |
| 275 HP (6 Cyl) | 1989-1994 | C101891-D280900 |
| 300 HP 3.4L (6 Cyl) | 1980-1987 | 5611648-A996135 |
 |
| Model/HP | Year | Serial Number |
| 70 HP | 1991-1992 | E000001-E009499 |
| 90 HP* | 1991 | L Drive B & D |
| 90 HP | 1991 | E000001-E009499 |
| 90 HP | 1991 | E009500-E039023 |
| 90 Sport Jet | 1993-1994 | E023150-E033710 |
Chrysler/Force mid-year model changes are designated with a letter. i.e. 1991A versus 1991B. In order to choose the correct part, you must know which model you have. Older model engines will have a metal placard inside the engine up by the carburator with the model, serial number and year listed. Newer models will have a plastic tag with the information fixed to the clamp bracket on the left side
P65Warnings.ca.gov
Product Code: 667-1147778
